Key Facts — 6QP-12060
SHENGXING 6QP-12060 automatic spring roll wrapper machine delivers 8,000 pcs/h. The 6QP-12060 is the high-output end of the classic wrapper range: a 600 mm drum delivering 8,000 pcs/h, used both for frozen spring roll sheets and for industrial injera baking. Alloy-cast heating drum ground to +/-0.05 mm tolerance. 5 mm SUS304 frame on 70%+ of the structure. Proprietary electromagnetic heating saves 15-20% energy. CE certified (M.2022.206.C76950, valid to 2027-08-30). Lead time 60 days, MOQ 1 set, FOB / CIF / DDU, port of Tianjin (Qingdao optional).. Footprint 5,600 × 1,200 × 2,000 mm, weight 1,994 kg.
Spring Roll Wrapper Machine

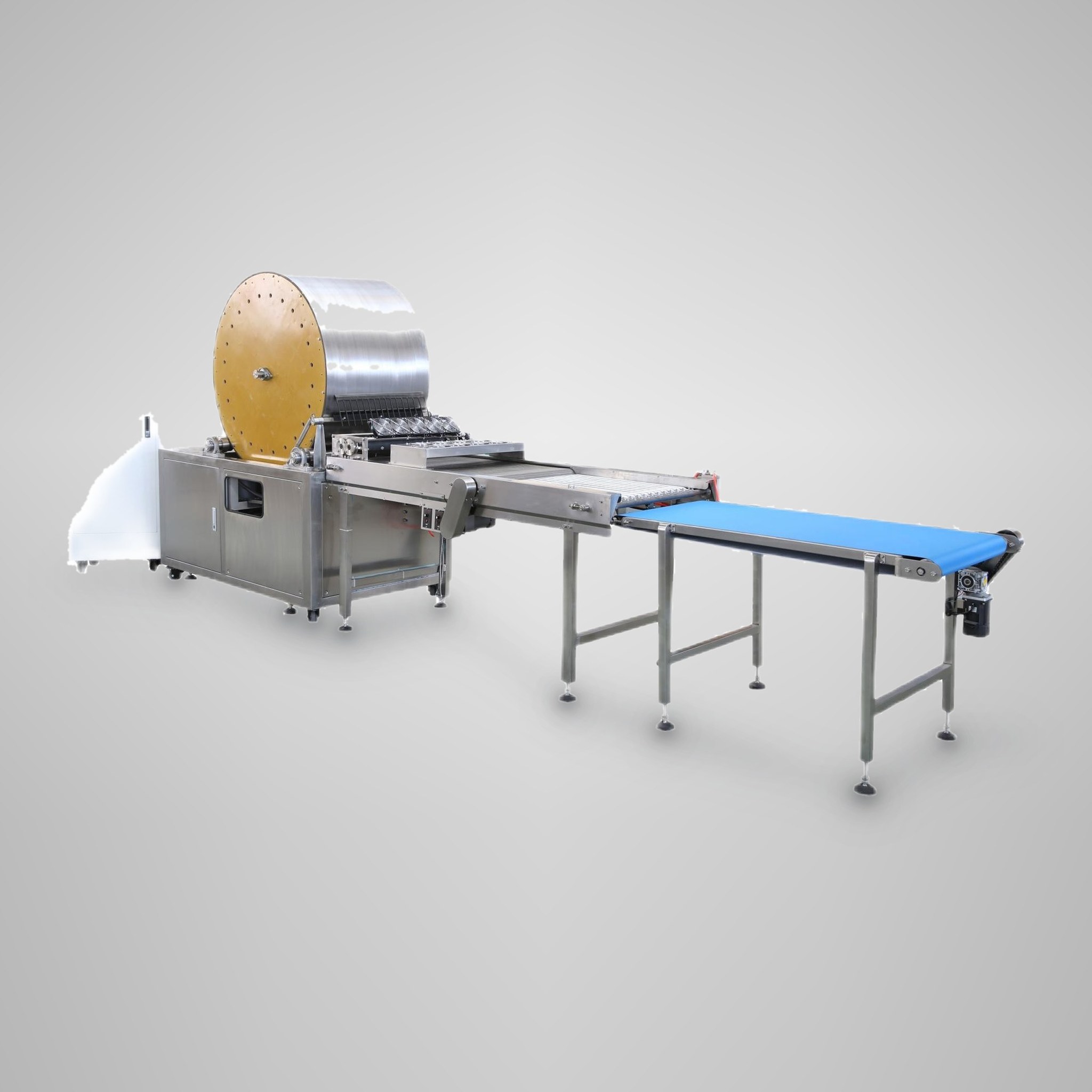

6QP-12060 Automatic Wrapper Machine — Spring Roll & Injera, 8,000 pcs/h
Automatic spring roll wrapper machine
Rated output: 8,000 pcs/h | Lead time: 60 days | MOQ: 1 set
Product Details
Technical Specifications
| Production capacity | 8,000 pcs/h |
|---|---|
| Maximum heating width | 600 mm |
| Sheet thickness | 0.3-1.2 mm, tolerance +/-0.05 mm |
| Electrothermal power | 59 kW |
| Drum / cutter / conveyor / pump | 0.4 kW / 0.4 kW / 0.6 kW / 0.75 kW |
| Voltage | 380V, 50/60Hz |
| Dimensions (L x W x H) | 5,600 × 1,200 × 2,000 mm |
| Machine weight | 1,994 kg |
| Frame material | 5 mm SUS304 on 70%+ of the structure, full-weld anti-corrosion |
| Heating drum | Integrated alloy casting, ground to 0.05 mm, zero warping |
| Control system | PLC + large HMI, self-developed linkage with software copyright |
| Certification | CE, Certificate No. M.2022.206.C76950, valid to 2027-08-30 |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
The 600 mm heating width is the widest drum in the SHENGXING wrapper range, which is why industrial injera bakeries specify this model rather than the 450 mm 6QP-8045.
- Alloy-cast drum ground to +/-0.05 mm. The heating drum is cast as one piece and ground to a 0.05 mm tolerance. It does not warp under thermal cycling, so wrapper thickness stays uniform across the full working width.
- Proprietary electromagnetic heating saves 15-20% energy. Electromagnetic heating replaces resistance tubes, cuts electricity use by 15-20% and holds drum surface variation within 1 degree C under PLC control.
- 5 mm SUS304 frame on 70%+ of the structure. Over 70% of the frame uses 5 mm food-grade SUS304, seamless full-welded and polished: no dead corners, HACCP-compatible, 10+ year service life.
What this means on the 6QP-12060
- 600 mm ultra-wide alloy-cast drum — the widest in the SHENGXING wrapper range
- 8,000 pcs/h output on one frame serving spring roll and injera production
- Patented firmware keeps acidic fermented batter from stalling the sensors over 24/7 runs
Applications & Target Markets
The 6QP-12060 spring roll wrapper machine is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Lumpia wrapper (Philippines and Indonesia)
Indonesian buyers know this sheet as kulit lumpia or mesin kulit; the 200-600 mm drum widths in this range cover both small retail sheets and wide industrial ones.
Samosa pastry (India, Pakistan, Gulf)
Samosa sheets are rolled and cut to square. Thickness is held at 0.3-1.2 mm with +/-0.05 mm tolerance so the shell does not blister unevenly in the fryer.
Popiah skin (Singapore, Malaysia)
Popiah needs a softer, more elastic sheet than a fried wrapper; drum temperature is held within 1 degree C by the PLC so elasticity stays constant through the shift.
Injera (Ethiopia and Eritrea)
The 600 mm mm drum width is wide enough to cast the open honeycomb eye structure that teff injera requires, and the patented control firmware prevents acidic fermented batter from stalling the sensors during 24/7 production. See the injera machine application page for process detail.
Should You Specify the 6QP-12060?
The 6QP-12060 is the machine to specify when injera is the primary product rather than a second line: 600 mm is the widest drum SHENGXING builds, and 8,000 pieces per hour is roughly double the 450 mm model. It also serves high-volume wrapper sheeting, so plants with both demands buy one unit instead of two.
Certification & Intellectual Property
- CE certification. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30. Covers 16 model designations. Full detail on the certificates page.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
- Hygiene design. 5 mm SUS304 on 70%+ of the structure, seamless full-welded and polished, no dead corners, HACCP-compatible.
Granted patents covering this technology
- ZL 2019 2 0412858.7 — New-type fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
- ZL 2019 2 0412242.X — Fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6QP-12060 production capacity?
The 6QP-12060 automatic spring roll wrapper machine is rated at 8,000 pcs/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6QP-12060?
The 6QP-12060 measures 5,600 × 1,200 × 2,000 mm and weighs 1,994 kg. Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order.
Is the 6QP-12060 CE certified?
Yes. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30.
What is the lead time and minimum order quantity for the 6QP-12060?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6QP-12060 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Response SLA | 24h reply / 4h engineer intervention / 24h solution; Response within 2 hours; 100% on-time dispatch |
| Commissioning | remote video commissioning resolution rate 98%+. On-site engineer dispatch available, travel costs borne by the buyer |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your 6QP-12060 Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
