Key Facts — 6QP-15000
6QP-15000 is a complete automatic filled spring roll production line, not a wrapper-only machine. Rated output is 15,000 pcs/h. The standard process forms and cools the wrapper, meters filling, then folds and rolls the product. Published utilities are 100 kW heating power, 380V 50/60Hz and 0.6-0.8 MPa compressed-air pressure. Dimensions are 13,500 × 1,350 × 2,200 mm; line weight is 4,260 kg. Actual accepted output and utility consumption must be verified for the buyer’s product and FAT conditions.
Spring Roll Machine

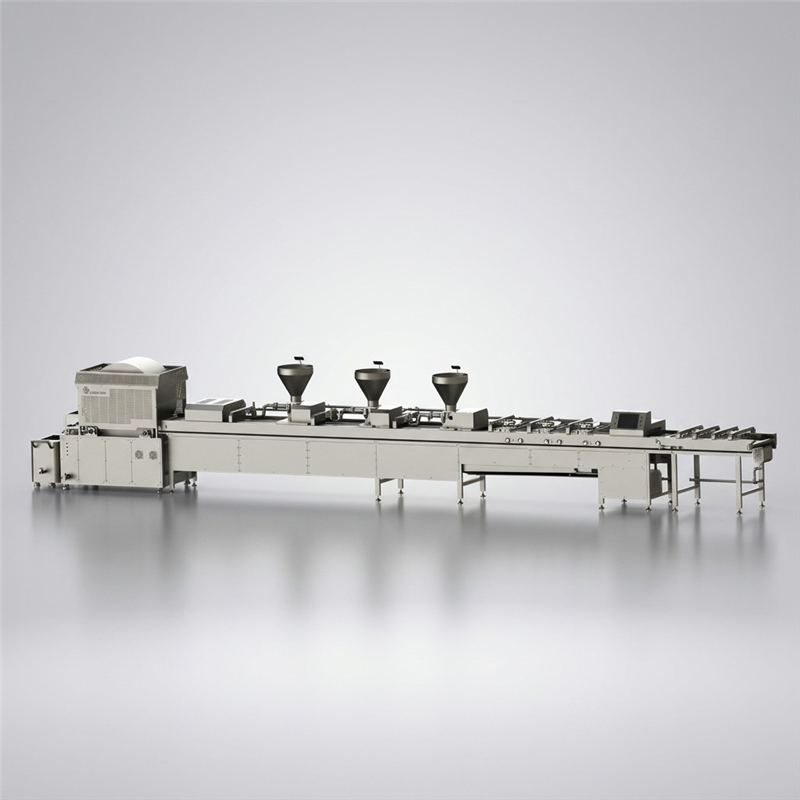

6QP-15000 Complete Automatic Filled Spring Roll Production Line — 15,000 pcs/h
Wrapper forming, cooling, filling, folding and rolling line
Rated output: 15,000 pcs/h | Lead time: 60 days | MOQ: 1 set
Complete filled-line scope and evidence status
6QP-15000 is a complete automatic filled spring roll production line, not a wrapper-only machine. Its standard process covers wrapper forming, cooling, filling, folding and rolling. A batter mixer and the downstream freezer, fryer or packing connection are configuration-dependent interfaces and must be confirmed in the quotation.
| Buyer question | Published answer | Evidence status |
|---|---|---|
| Rated output | 15,000 pcs/h; actual accepted output depends on product size, batter, filling, changeovers, cleaning, stops and rejects | Verified specification; FAT conditions buyer must confirm |
| Installed heating power | 100 kW; this is not measured hourly energy use | Verified specification |
| Voltage / frequency | 380V, 50/60Hz standard; 220V / 415V customization stated by current engineering data | Configuration dependent |
| Compressed air | 0.6-0.8 MPa pressure | Verified specification; consumption buyer must confirm |
| Water and drainage | No verified consumption or connection value is published | Buyer must confirm from cleaning method and site plan |
| Footprint / weight | 13,500 × 1,350 × 2,200 mm; 4,260 kg | Verified machine dimensions and weight; maintenance clearance buyer must confirm |
| Materials | 5 mm SUS304 on 70%+ of the structure | Verified specification; request model-specific material report |
| Electrical enclosure IP rating | No IP rating is published | Buyer must confirm; no IP65/IP66 claim |
| Operating environment | No verified ambient-temperature range is published | Buyer must confirm for the destination |
FAT, cleaning, commissioning and spare-parts evidence
- FAT inputs: agree whose raw materials and recipe are used, the continuous-run interval, accepted-product definition and how output, dimensions, weight, thickness, breakage and leakage are logged.
- Product-contact cleaning: identify removable contact parts and demonstrate removal, cleaning, inspection and reassembly during FAT. Detailed steps and water/drainage demand are configuration dependent.
- Commissioning and training: scope, language, remote versus on-site work, travel boundaries and operator training must be written into the order.
- Spare parts: the initial spare/wear-parts package must be itemized for the ordered configuration; no universal pack is implied.
- Published service term: one-year complete-machine warranty, wear parts excluded. Other response metrics require a formal service policy and are not repeated here.
Use the factory acceptance test checklist to define the acceptance record.
Product Details
Technical Specifications
| Production capacity | 15,000 pcs/h |
|---|---|
| Electrothermal power | 100 kW |
| Hot roll / mold / conveyor | 0.75 kW / 0.2 kW / 0.75 kW |
| Pump / filling power | 1.5 kW / 7.5 kW |
| Voltage | 380V, 50/60Hz |
| Air supply pressure | 0.6-0.8 MPa |
| Cooling fans | 6-12 pcs, 15 W each |
| Dimensions (L x W x H) | 13,500 × 1,350 × 2,200 mm |
| Machine weight | 4,260 kg |
| Frame material | 5 mm SUS304 on 70%+ of the structure |
| Control system | Siemens PLC + HMI, servo driven |
| Certification | CE certificate covers 6QP-15075; 6QP-15000 is not a listed designation on that certificate and is not presented as CE marked. |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages

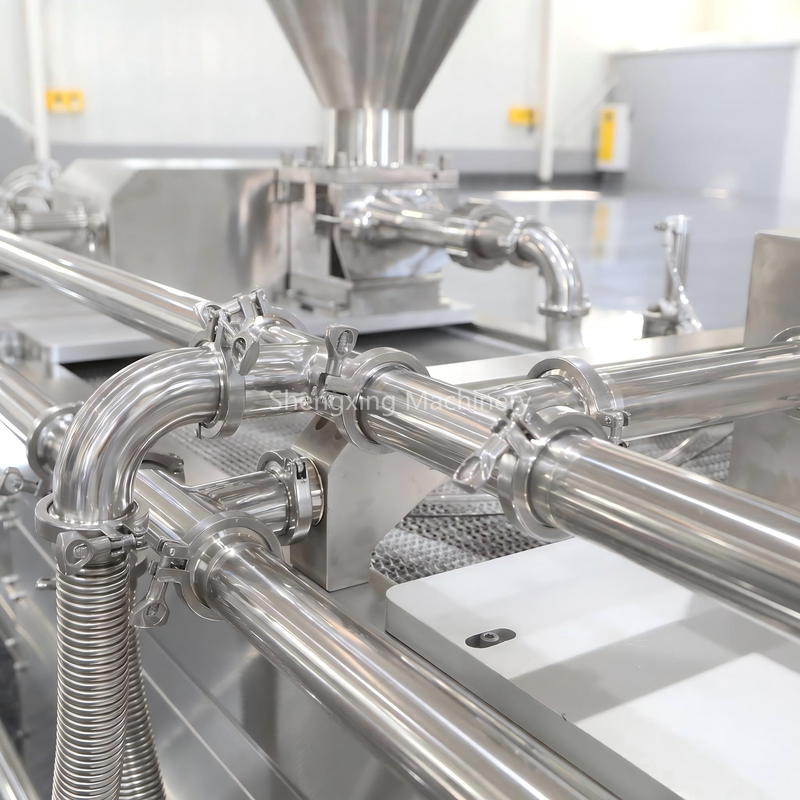

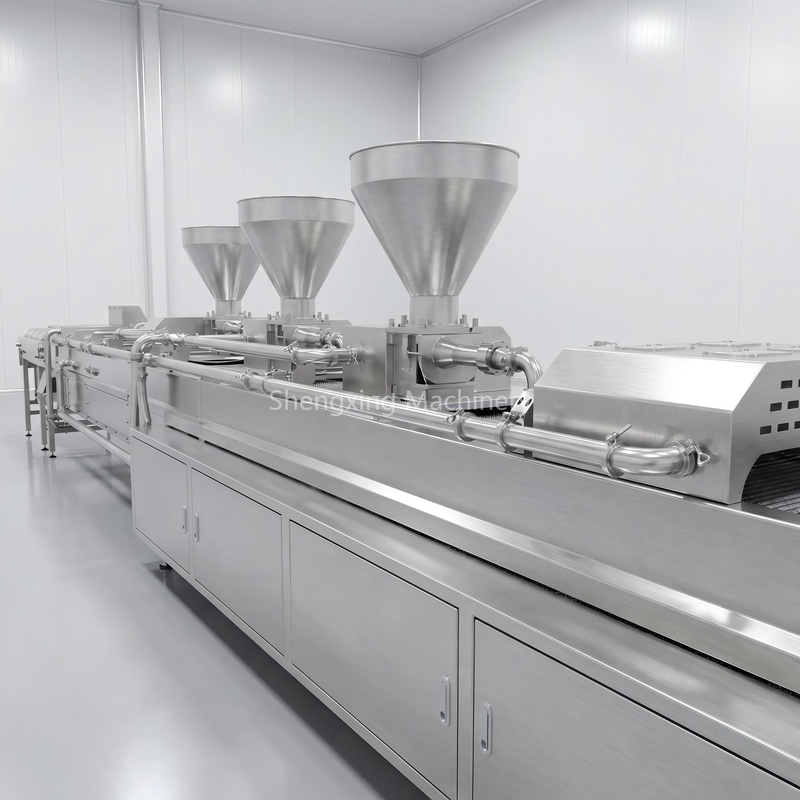

Three high-output folding forming modules run in parallel, the filling station is 7.5 kW and 6-12 cooling fans hold sheet temperature, so the line sustains 15,000 pcs/h rather than peaking at it.

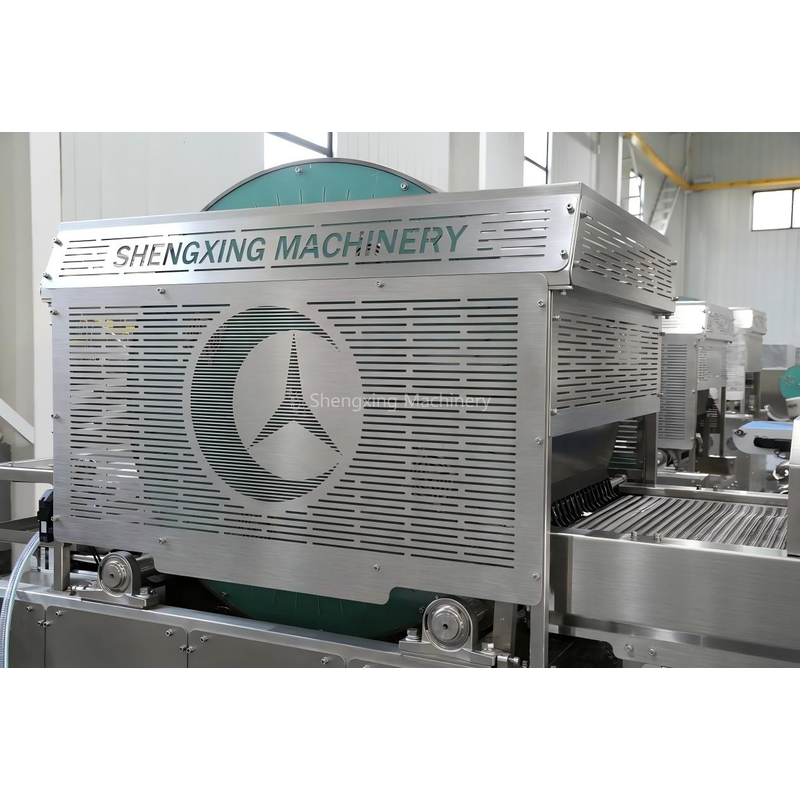

- Alloy-cast drum ground to +/-0.05 mm. The heating drum is cast as one piece and ground to a 0.05 mm tolerance. It does not warp under thermal cycling, so wrapper thickness stays uniform across the full working width.
- Proprietary electromagnetic heating saves 15-20% energy. Electromagnetic heating replaces resistance tubes, cuts electricity use by 15-20% and holds drum surface variation within 1 degree C under PLC control.
- 5 mm SUS304 frame on 70%+ of the structure. Over 70% of the frame uses 5 mm food-grade SUS304, seamless full-welded and polished: no dead corners, HACCP-compatible, 10+ year service life.
What this means on the 6QP-15000
- 15,000 pcs/h — the highest output in the SHENGXING spring roll range

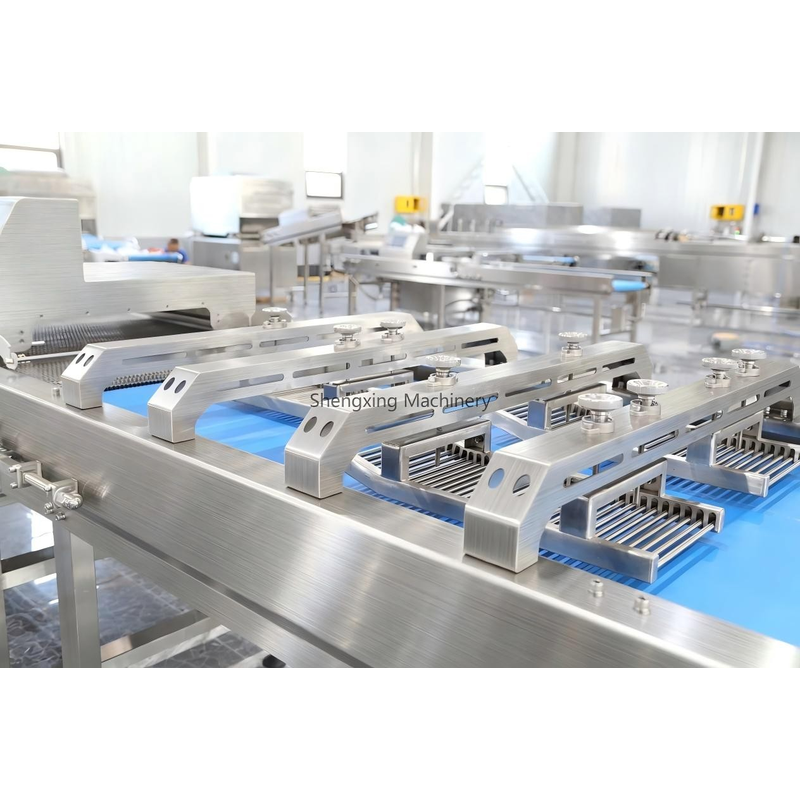

- Triple parallel high-output folding modules eliminate filling leakage and skin tearing
- 5 mm SUS304 on 70%+ of the structure with Siemens PLC + HMI control
Applications & Target Markets
The 6QP-15000 spring roll machine is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Lumpia (Philippines)
Frozen and fresh lumpia programmes use the same folded geometry as Chinese spring rolls, so the 6QP series runs lumpia wrappers and filled lumpia without tooling changes.
Popiah and spring rolls (Southeast Asia)
Popiah skins need a thinner, more elastic sheet than a fried spring roll; sheet thickness is set steplessly within 0.3-1.2 mm at +/-0.05 mm tolerance.
Samosa and spring roll (South Asia and Middle East)
Samosa pastry sheets are cut to square and fried hard, which is why the alloy-cast drum holding +/-0.05 mm matters more than raw speed on these programmes.
Should You Specify the 6QP-15000?
The 6QP-15000 is for a dedicated export line, not for a plant that also runs other products. At 13.5 m and 4,260 kg it needs a straight run of floor and a 100 kW heating circuit. Buyers choosing it are usually replacing several manual lines at once and have already committed the freezer and packaging capacity downstream.
Certification & Intellectual Property
- Certification scope. Certification coverage is confirmed by the model designation stated in the signed technical agreement.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
- Hygiene design. 5 mm SUS304 on 70%+ of the structure, seamless full-welded and polished, no dead corners, HACCP-compatible.
Granted patents covering this technology
- ZL201910254807.0 — Automatic spring roll sheet-forming and filling machine (Invention, granted 2022-03-25)
- ZL 2019 2 0412858.7 — New-type fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
- ZL 2019 2 0412242.X — Fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6QP-15000 production capacity?
The 6QP-15000 automatic spring roll machine is rated at 15,000 pcs/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6QP-15000?
The 6QP-15000 measures 13,500 × 1,350 × 2,200 mm and weighs 4,260 kg. Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order.
Is the 6QP-15000 CE certified?
The CE certificate covers 6QP-15075. 6QP-15000 is not a listed designation on that certificate and is not presented as CE marked on this page; the final designation is confirmed in the signed technical agreement.
What is the lead time and minimum order quantity for the 6QP-15000?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6QP-15000 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Commissioning | Remote or on-site scope, training language, travel costs and acceptance boundaries are configuration dependent and must be confirmed in the contract. |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your 6QP-15000 Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
