Key Facts — 6QP-6000
6QP-6000 is a complete automatic filled spring roll production line, not a wrapper-only machine. Rated output is 5,000 pcs/h. The standard process forms and cools the wrapper, meters filling, then folds and rolls the product. Published utilities are 60 kW heating power, 380V 50/60Hz and 0.6-0.8 MPa compressed-air pressure. Dimensions are 9,000 × 1,120 × 2,000 mm; line weight is 2,860 kg. Actual accepted output and utility consumption must be verified for the buyer’s product and FAT conditions.
Spring Roll Machine

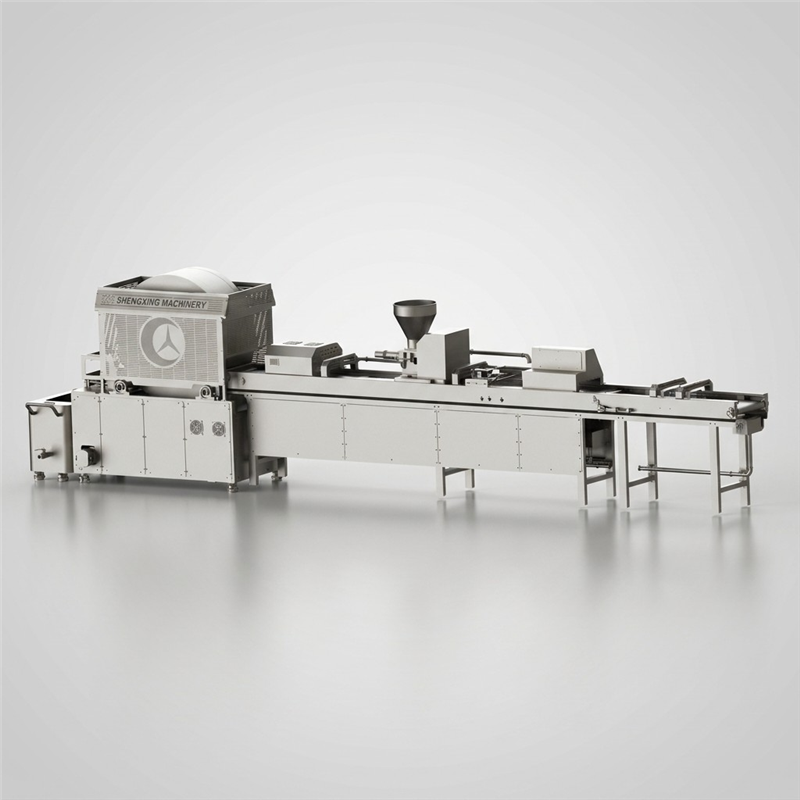

6QP-6000 Complete Automatic Filled Spring Roll Production Line — 5,000 pcs/h
Wrapper forming, cooling, filling, folding and rolling line
Rated output: 5,000 pcs/h | Lead time: 60 days | MOQ: 1 set
Complete filled-line scope and evidence status
6QP-6000 is a complete automatic filled spring roll production line, not a wrapper-only machine. Its standard process covers wrapper forming, cooling, filling, folding and rolling. A batter mixer and the downstream freezer, fryer or packing connection are configuration-dependent interfaces and must be confirmed in the quotation.
| Buyer question | Published answer | Evidence status |
|---|---|---|
| Rated output | 5,000 pcs/h; actual accepted output depends on product size, batter, filling, changeovers, cleaning, stops and rejects | Verified specification; FAT conditions buyer must confirm |
| Installed heating power | 60 kW; this is not measured hourly energy use | Verified specification |
| Voltage / frequency | 380V, 50/60Hz standard; 220V / 415V customization stated by current engineering data | Configuration dependent |
| Compressed air | 0.6-0.8 MPa pressure | Verified specification; consumption buyer must confirm |
| Water and drainage | No verified consumption or connection value is published | Buyer must confirm from cleaning method and site plan |
| Footprint / weight | 9,000 × 1,120 × 2,000 mm; 2,860 kg | Verified machine dimensions and weight; maintenance clearance buyer must confirm |
| Materials | 5 mm SUS304 on 70%+ of the structure | Verified specification; request model-specific material report |
| Electrical enclosure IP rating | No IP rating is published | Buyer must confirm; no IP65/IP66 claim |
| Operating environment | No verified ambient-temperature range is published | Buyer must confirm for the destination |
FAT, cleaning, commissioning and spare-parts evidence
- FAT inputs: agree whose raw materials and recipe are used, the continuous-run interval, accepted-product definition and how output, dimensions, weight, thickness, breakage and leakage are logged.
- Product-contact cleaning: identify removable contact parts and demonstrate removal, cleaning, inspection and reassembly during FAT. Detailed steps and water/drainage demand are configuration dependent.
- Commissioning and training: scope, language, remote versus on-site work, travel boundaries and operator training must be written into the order.
- Spare parts: the initial spare/wear-parts package must be itemized for the ordered configuration; no universal pack is implied.
- Published service term: one-year complete-machine warranty, wear parts excluded. Other response metrics require a formal service policy and are not repeated here.
Use the factory acceptance test checklist to define the acceptance record.
Product Details
Technical Specifications
| Production capacity | 5,000 pcs/h |
|---|---|
| Electrothermal power | 60 kW |
| Hot roll / mold / conveyor | 0.4 kW / 0.1 kW / 0.4 kW |
| Pump / filling power | 0.75 kW / 2.5 kW |
| Voltage | 380V, 50/60Hz |
| Air supply pressure | 0.6-0.8 MPa |
| Cooling fans | 2-6 pcs, 15 W each |
| Dimensions (L x W x H) | 9,000 × 1,120 × 2,000 mm |
| Machine weight | 2,860 kg |
| Frame material | 5 mm SUS304 on 70%+ of the structure |
| Control system | Siemens PLC + HMI, servo driven |
| Certification | CE, Certificate No. M.2022.206.C76950, valid to 2027-08-30 |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
Compared with the 6QP-3000 it adds a 9,000 mm frame, 60 kW of heating and a 1.5 kW pump, which is what keeps sheet formation stable when the line runs continuously rather than in batches.
- Alloy-cast drum ground to +/-0.05 mm. The heating drum is cast as one piece and ground to a 0.05 mm tolerance. It does not warp under thermal cycling, so wrapper thickness stays uniform across the full working width.
- Proprietary electromagnetic heating saves 15-20% energy. Electromagnetic heating replaces resistance tubes, cuts electricity use by 15-20% and holds drum surface variation within 1 degree C under PLC control.
- 5 mm SUS304 frame on 70%+ of the structure. Over 70% of the frame uses 5 mm food-grade SUS304, seamless full-welded and polished: no dead corners, HACCP-compatible, 10+ year service life.
What this means on the 6QP-6000

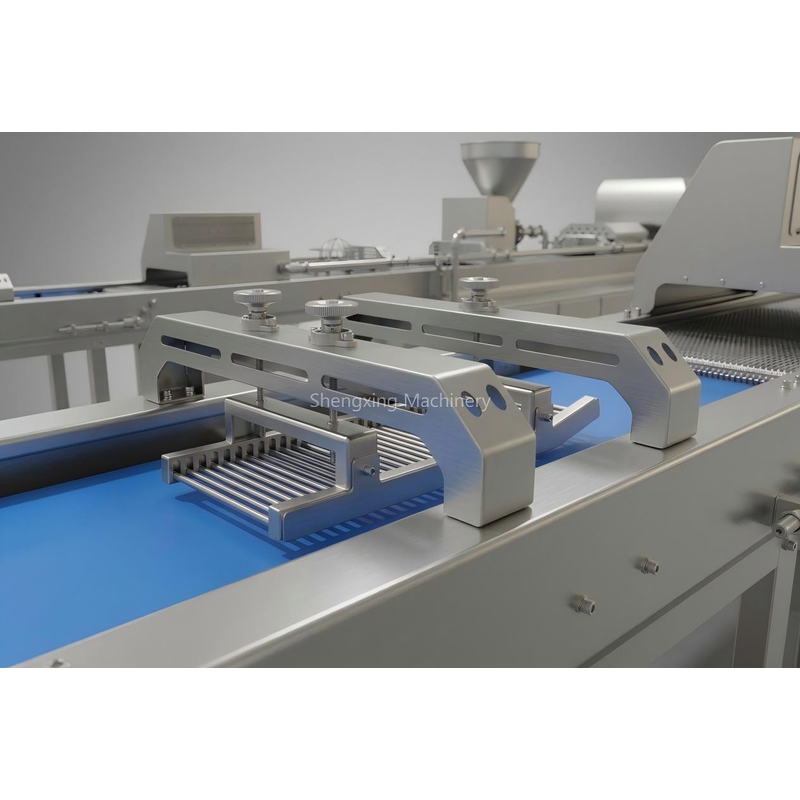

- Proprietary high-output folding module holds seal integrity at 5,000 pcs/h
- Alloy-cast drum ground to +/-0.05 mm keeps sheet thickness uniform across the width
- Electromagnetic heating cuts electricity use 15-20% versus resistance tubes
Applications & Target Markets
The 6QP-6000 spring roll machine is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Lumpia (Philippines)
Frozen and fresh lumpia programmes use the same folded geometry as Chinese spring rolls, so the 6QP series runs lumpia wrappers and filled lumpia without tooling changes.
Popiah and spring rolls (Southeast Asia)
Popiah skins need a thinner, more elastic sheet than a fried spring roll; sheet thickness is set steplessly within 0.3-1.2 mm at +/-0.05 mm tolerance.
Samosa and spring roll (South Asia and Middle East)
Samosa pastry sheets are cut to square and fried hard, which is why the alloy-cast drum holding +/-0.05 mm matters more than raw speed on these programmes.
Should You Specify the 6QP-6000?
The 6QP-6000 suits a plant whose bottleneck is the blast freezer rather than the folding bench: 5,000 pieces per hour matches one freezer tunnel running a single shift. Take the 6QP-3000 if you are still under 3,000 per hour, and step up to the 6QP-12000 only when a second shift is already committed.
Certification & Intellectual Property
- CE certification. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30. Covers 16 model designations. Full detail on the certificates page.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
- Hygiene design. 5 mm SUS304 on 70%+ of the structure, seamless full-welded and polished, no dead corners, HACCP-compatible.
Granted patents covering this technology
- ZL201910254807.0 — Automatic spring roll sheet-forming and filling machine (Invention, granted 2022-03-25)
- ZL 2019 2 0412858.7 — New-type fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
- ZL 2019 2 0412242.X — Fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6QP-6000 production capacity?
The 6QP-6000 automatic spring roll machine is rated at 5,000 pcs/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6QP-6000?
The 6QP-6000 measures 9,000 × 1,120 × 2,000 mm and weighs 2,860 kg. Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order.
Is the 6QP-6000 CE certified?
Yes. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30.
What is the lead time and minimum order quantity for the 6QP-6000?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6QP-6000 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Commissioning | Remote or on-site scope, training language, travel costs and acceptance boundaries are configuration dependent and must be confirmed in the contract. |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
