Key Facts — 6QP-3000
SHENGXING 6QP-3000 automatic spring roll machine delivers 3,000 pcs/h. The 6QP-3000 is the entry point of the SHENGXING automatic spring roll range: it replaces a 10-person manual folding bench with one 7.5 m line supervised by a single operator. Alloy-cast heating drum ground to +/-0.05 mm tolerance. 5 mm SUS304 frame on 70%+ of the structure. Proprietary electromagnetic heating saves 15-20% energy. CE certified (M.2022.206.C76950, valid to 2027-08-30). Lead time 60 days, MOQ 1 set, FOB / CIF / DDU, port of Tianjin (Qingdao optional).. Footprint 7,500 × 1,120 × 1,800 mm, weight 1,980 kg.
Spring Roll Machine

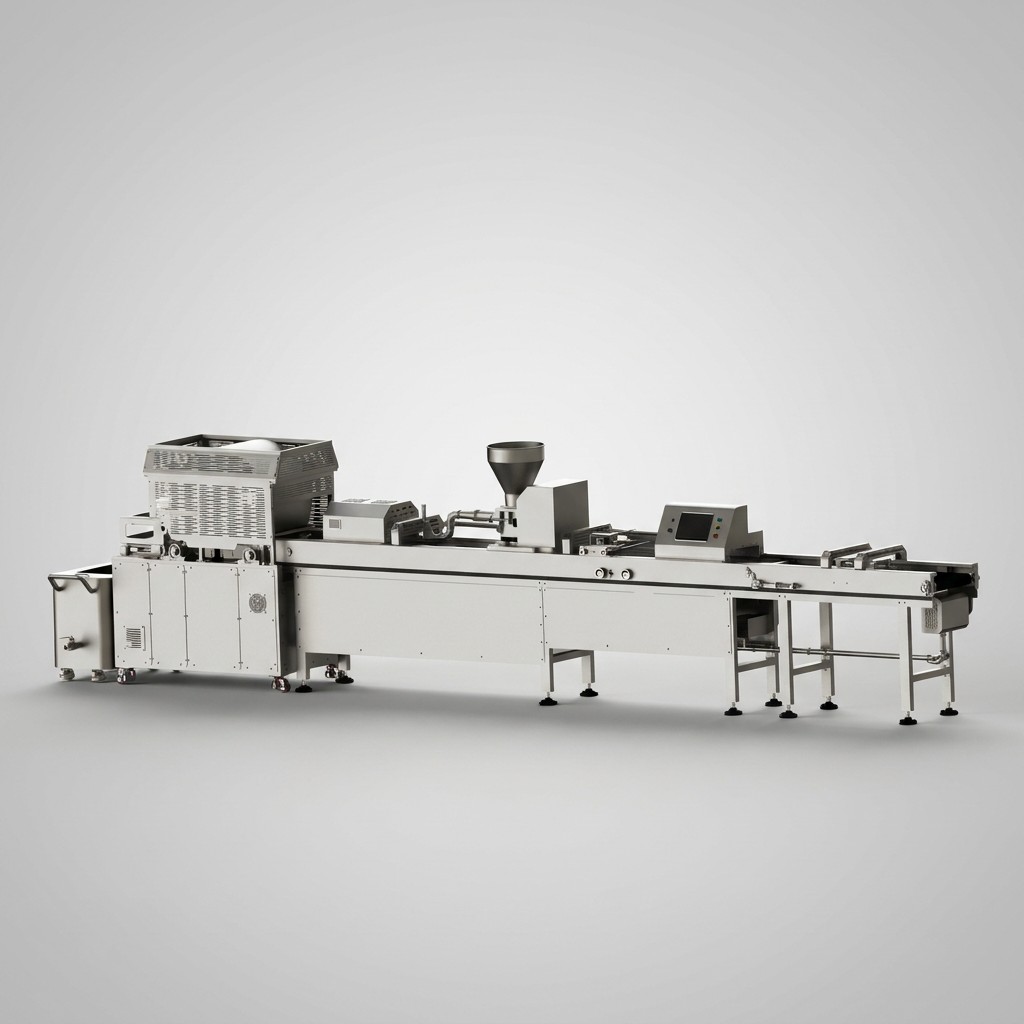

6QP-3000 Automatic Spring Roll Machine — 3,000 pcs/h
Automatic spring roll machine
Rated output: 3,000 pcs/h | Lead time: 60 days | MOQ: 1 set
Product Details
Technical Specifications
| Production capacity | 3,000 pcs/h |
|---|---|
| Electrothermal power | 40 kW |
| Hot roll / mold / conveyor | 0.4 kW / 0.1 kW / 0.4 kW |
| Pump / filling power | 0.75 kW / 2.5 kW |
| Voltage | 380V, 50/60Hz |
| Air supply pressure | 0.6-0.8 MPa |
| Cooling fans | 2-6 pcs, 15 W each |
| Dimensions (L x W x H) | 7,500 × 1,120 × 1,800 mm |
| Machine weight | 1,980 kg |
| Frame material | 5 mm SUS304 on 70%+ of the structure |
| Control system | Siemens PLC + HMI, servo driven |
| Certification | CE, Certificate No. M.2022.206.C76950, valid to 2027-08-30 |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
At 7,500 mm long and 1,980 kg it fits workshops that cannot take a 13 m flagship line, and its 40 kW heating load runs on a standard 380V three-phase supply without a transformer upgrade.
- Alloy-cast drum ground to +/-0.05 mm. The heating drum is cast as one piece and ground to a 0.05 mm tolerance. It does not warp under thermal cycling, so wrapper thickness stays uniform across the full working width.
- Proprietary electromagnetic heating saves 15-20% energy. Electromagnetic heating replaces resistance tubes, cuts electricity use by 15-20% and holds drum surface variation within 1 degree C under PLC control.
- 5 mm SUS304 frame on 70%+ of the structure. Over 70% of the frame uses 5 mm food-grade SUS304, seamless full-welded and polished: no dead corners, HACCP-compatible, 10+ year service life.
What this means on the 6QP-3000
- Self-developed forming and folding module — no filling leakage, no skin tearing
- 5 mm SUS304 frame on 70%+ of the structure, seamless welded, 10+ year service life
- Siemens PLC one-touch start cuts staffing from 10+ operators to 1 line supervisor
Applications & Target Markets
The 6QP-3000 spring roll machine is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Lumpia (Philippines)
Frozen and fresh lumpia programmes use the same folded geometry as Chinese spring rolls, so the 6QP series runs lumpia wrappers and filled lumpia without tooling changes.
Popiah and spring rolls (Southeast Asia)
Popiah skins need a thinner, more elastic sheet than a fried spring roll; sheet thickness is set steplessly within 0.3-1.2 mm at +/-0.05 mm tolerance.
Samosa and spring roll (South Asia and Middle East)
Samosa pastry sheets are cut to square and fried hard, which is why the alloy-cast drum holding +/-0.05 mm matters more than raw speed on these programmes.
Should You Specify the 6QP-3000?
Choose the 6QP-3000 when you are moving off a manual folding bench for the first time and your hall cannot take a longer line. It is the only spring roll model in this range that ships inside a 7.5 m envelope and runs on 40 kW, which usually means no electrical upgrade. Buyers who later need more output normally add a second unit rather than replace it, because the sheet quality is identical to the larger models.
Certification & Intellectual Property
- CE certification. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30. Covers 16 model designations. Full detail on the certificates page.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
- Hygiene design. 5 mm SUS304 on 70%+ of the structure, seamless full-welded and polished, no dead corners, HACCP-compatible.
Granted patents covering this technology
- ZL201910254807.0 — Automatic spring roll sheet-forming and filling machine (Invention, granted 2022-03-25)
- ZL 2019 2 0412858.7 — New-type fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
- ZL 2019 2 0412242.X — Fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6QP-3000 production capacity?
The 6QP-3000 automatic spring roll machine is rated at 3,000 pcs/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6QP-3000?
The 6QP-3000 measures 7,500 × 1,120 × 1,800 mm and weighs 1,980 kg. Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order.
Is the 6QP-3000 CE certified?
Yes. CE certified - Certificate No. M.2022.206.C76950, issued by UDEM International Certification, directives 2006/42/EC + 2014/30/EU, valid to 2027-08-30.
What is the lead time and minimum order quantity for the 6QP-3000?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6QP-3000 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Response SLA | 24h reply / 4h engineer intervention / 24h solution; Response within 2 hours; 100% on-time dispatch |
| Commissioning | remote video commissioning resolution rate 98%+. On-site engineer dispatch available, travel costs borne by the buyer |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your 6QP-3000 Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
