Key Facts — 6QP-1600-R-Film
SHENGXING 6QP-1600-R-Film automatic round crepe and wrapper machine delivers 2,000-2,500 pcs/h. The 6QP-1600-R-Film is the 6QP-1600-R round frame with a hardware difference: two film-laminating stations that interleave sheets during stacking, so frozen stacks separate without tearing. Alloy-cast heating drum ground to +/-0.05 mm tolerance. 5 mm SUS304 frame on 70%+ of the structure. Proprietary electromagnetic heating saves 15-20% energy. Lead time 60 days, MOQ 1 set, FOB / CIF / DDU, port of Tianjin (Qingdao optional).. Footprint 6,400.50 × 3,468.85 × 1,908.30 mm, weight 2,650 kg.
Spring Roll Wrapper Machine
6QP-1600-R-Film Film-Laminating Wrapper Machine — 2,500 pcs/h
Automatic round crepe and wrapper machine
Rated output: 2,000-2,500 pcs/h | Lead time: 60 days | MOQ: 1 set
Product Details
Technical Specifications
| Production capacity | 2,000-2,500 pcs/h |
|---|---|
| Sheet shape | Round with interleave film |
| Total power | 67 kW |

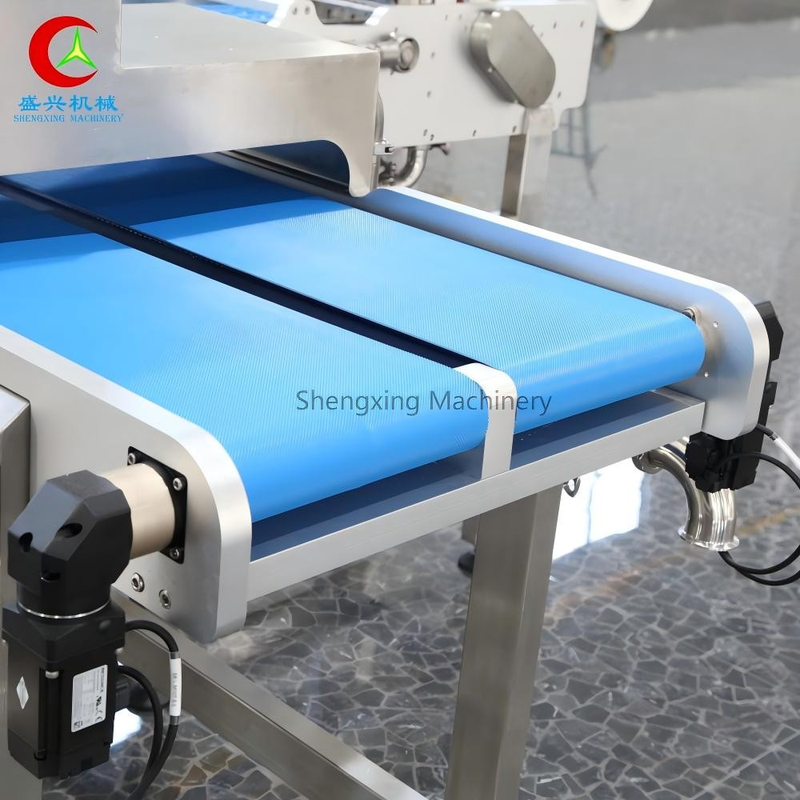

| Drum / conveyor / pump | 0.4 kW / 1.6 kW / 0.75 kW |

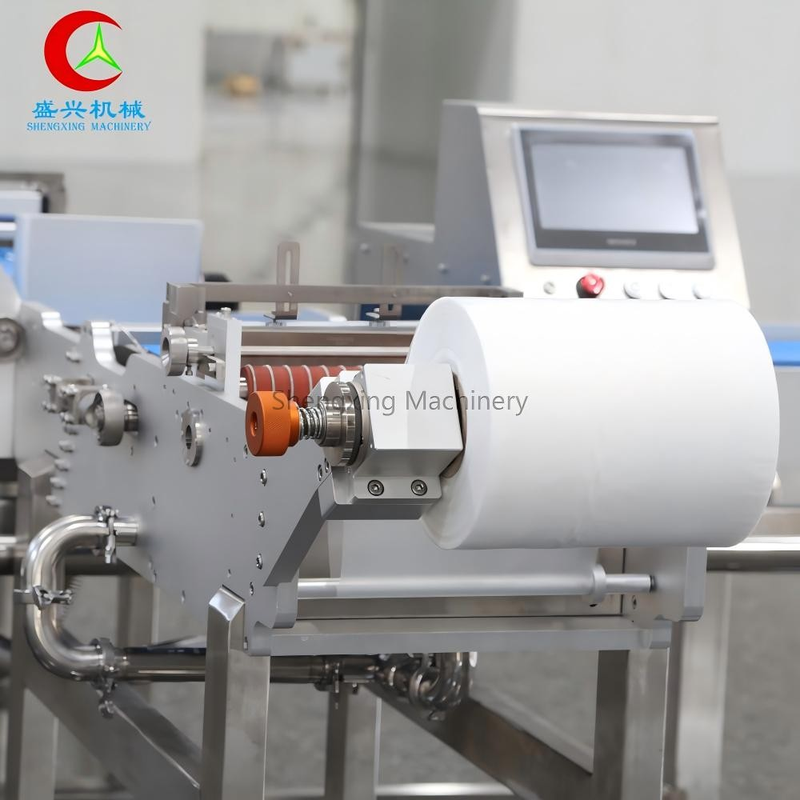

| Film-laminating stations | 2 × 1.75 kW (3.5 kW total) |
| Voltage | 380V, 50/60Hz |
| Air supply pressure | 0.6-0.8 MPa |

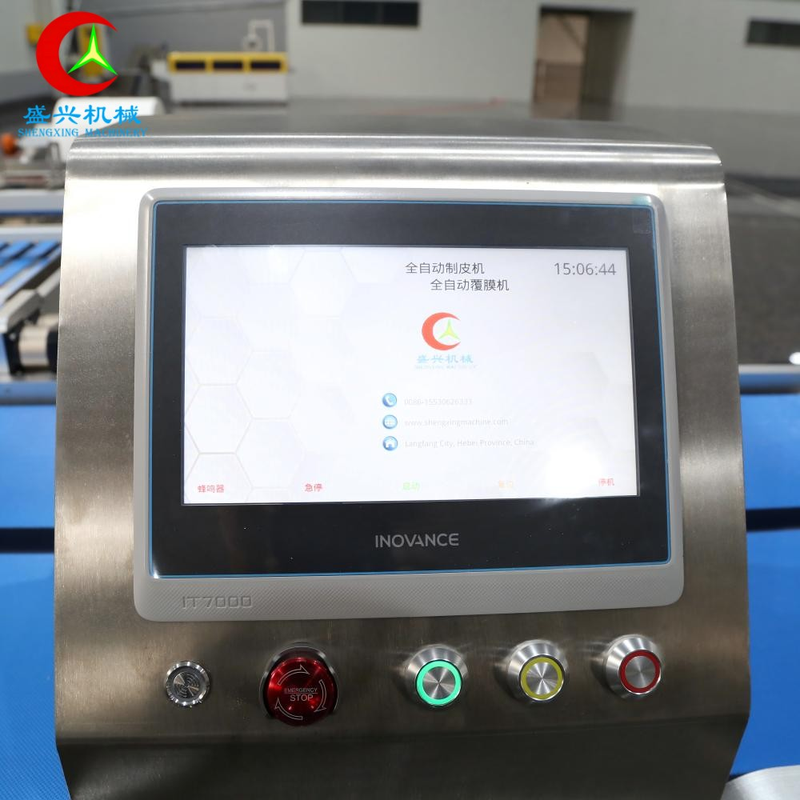

| Control system | Precision 4D power coupling control |
| Dimensions (L x W x H) | 6,400.50 × 3,468.85 × 1,908.30 mm |
| Machine weight | 2,650 kg |
| Frame material | 5 mm SUS304 stainless steel |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
Unlike the plain 6QP-1600-R it carries 2 × 1.75 kW film machines, a 6,400 mm frame, 2,650 kg and precision 4D power coupling control — output is 2,000-2,500 pcs/h rather than 3,000.

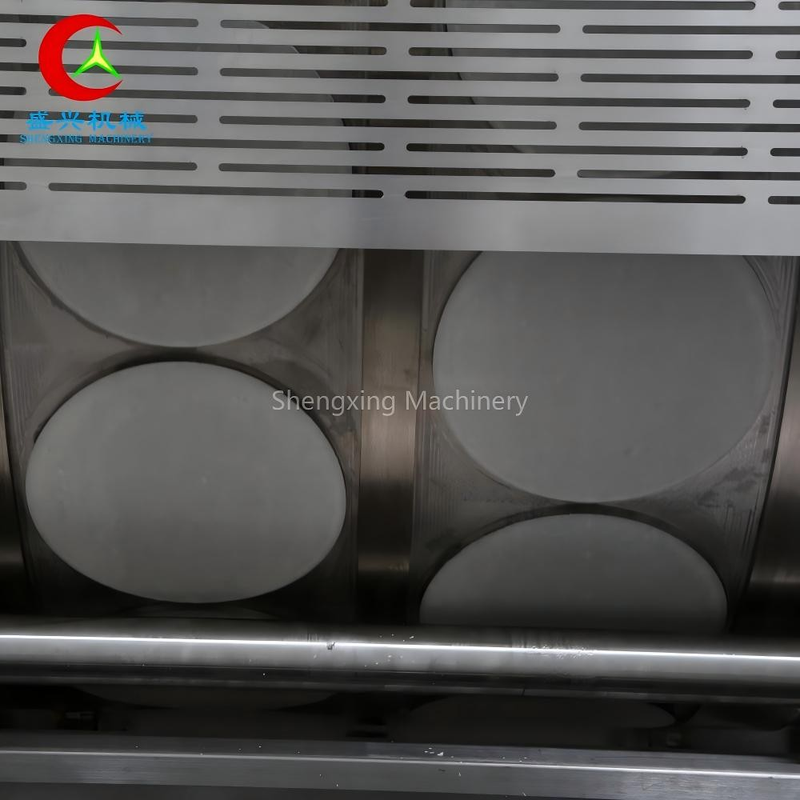

- Alloy-cast drum ground to +/-0.05 mm. The heating drum is cast as one piece and ground to a 0.05 mm tolerance. It does not warp under thermal cycling, so wrapper thickness stays uniform across the full working width.
- Proprietary electromagnetic heating saves 15-20% energy. Electromagnetic heating replaces resistance tubes, cuts electricity use by 15-20% and holds drum surface variation within 1 degree C under PLC control.

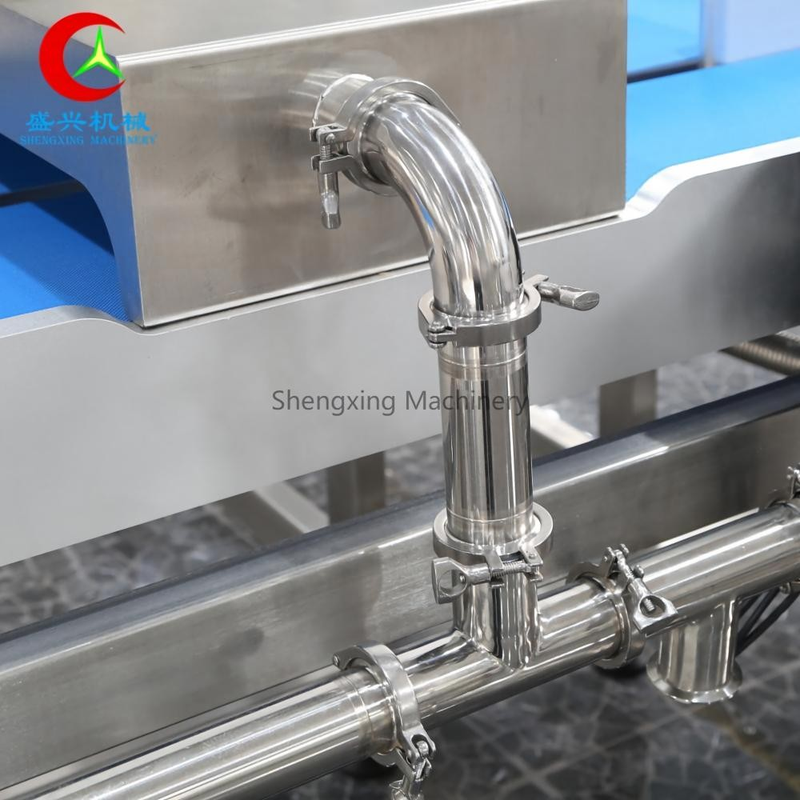

- 5 mm SUS304 frame on 70%+ of the structure. Over 70% of the frame uses 5 mm food-grade SUS304, seamless full-welded and polished: no dead corners, HACCP-compatible, 10+ year service life.
What this means on the 6QP-1600-R-Film

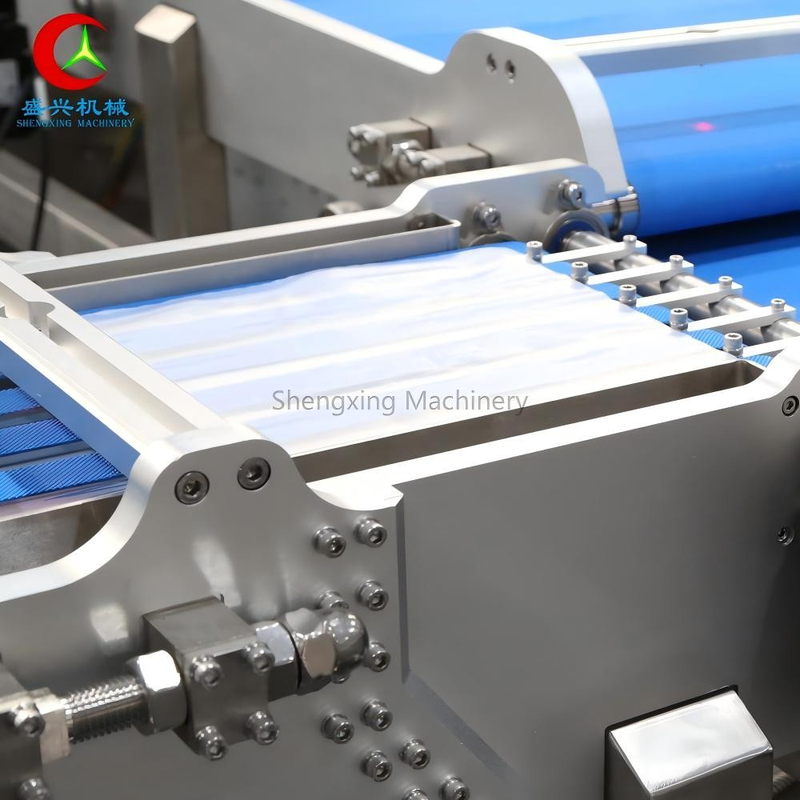

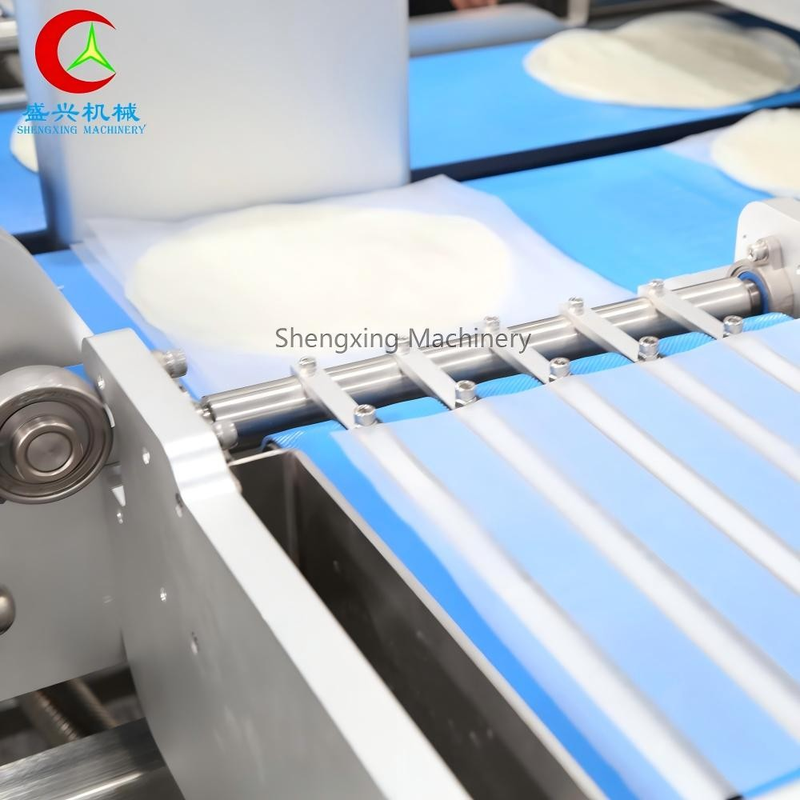

- Automatic film interleaving during stacking — zero sticking and a cleaner retail display
- 4D power coupling control holds sheet thickness consistent and minimises trim waste
- 30%+ capacity gain over manual stacking at 2,000-2,500 pcs/h
Applications & Target Markets
The 6QP-1600-R-Film round crepe and wrapper machine is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Crepe and galette (Europe)
Round 215 mm sheets are the standard crepe and galette format; the alloy-cast drum gives 100% consistency from the first sheet of the shift to the last.
Popiah and lumpia kulit (Southeast Asia)
Round sheets for popiah and Indonesian kulit lumpia are produced on the same drum with a batter change only - no tooling swap.
Dosa and thin flatbread (South Asia)
Fermented batters are abrasive on sensors; the self-developed PLC linkage used on this frame tolerates acidic batter without stalling.
Should You Specify the 6QP-1600-R-Film?
The film-laminating version exists for one reason: frozen retail stacks that will not separate. If your wrappers are sold frozen in counted packs and customers report tearing when they peel sheets apart, this is the machine to specify. It costs more and runs slower than the plain 6QP-1600-R, so buyers whose product is sold fresh usually do not need it.
Certification & Intellectual Property
- Conformity documentation. Material test reports, declarations of conformity and origin documents (CO, Form E, Form F; SASO and SONCAP clearance experience) are supplied with this model. This model designation is not listed on CE certificate M.2022.206.C76950; no CE marking is claimed for it.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
- Hygiene design. 5 mm SUS304 on 70%+ of the structure, seamless full-welded and polished, no dead corners, HACCP-compatible.
Granted patents covering this technology
- ZL 2019 2 0412858.7 — New-type fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
- ZL 2019 2 0412242.X — Fully automatic spring roll wrapper machine (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6QP-1600-R-Film production capacity?
The 6QP-1600-R-Film automatic round crepe and wrapper machine is rated at 2,000-2,500 pcs/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6QP-1600-R-Film?
The 6QP-1600-R-Film measures 6,400.50 × 3,468.85 × 1,908.30 mm and weighs 2,650 kg. Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order.
Is the 6QP-1600-R-Film CE certified?
The 6QP-1600-R-Film model designation is not listed on CE certificate M.2022.206.C76950, so we do not claim CE marking for it. Material test reports, declarations of conformity and origin documents (CO, Form E, Form F; SASO and SONCAP clearance experience) are supplied. If your market requires CE marking for this model, tell us at enquiry stage and we will confirm in writing what can be arranged.
What is the lead time and minimum order quantity for the 6QP-1600-R-Film?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6QP-1600-R-Film be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Response SLA | 24h reply / 4h engineer intervention / 24h solution; Response within 2 hours; 100% on-time dispatch |
| Commissioning | remote video commissioning resolution rate 98%+. On-site engineer dispatch available, travel costs borne by the buyer |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your 6QP-1600-R-Film Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
