Key Facts — SX-200
SHENGXING SX-200 batter mixing and homogenizing system delivers dual 200L tanks. The SX-200 prepares the batter that every drum machine in this catalogue depends on: a two-stage mix and homogenize system that refines batter to micron level. Lead time 60 days, MOQ 1 set, FOB / CIF / DDU, port of Tianjin (Qingdao optional).. weight 1,200 kg.
Batter Mixer

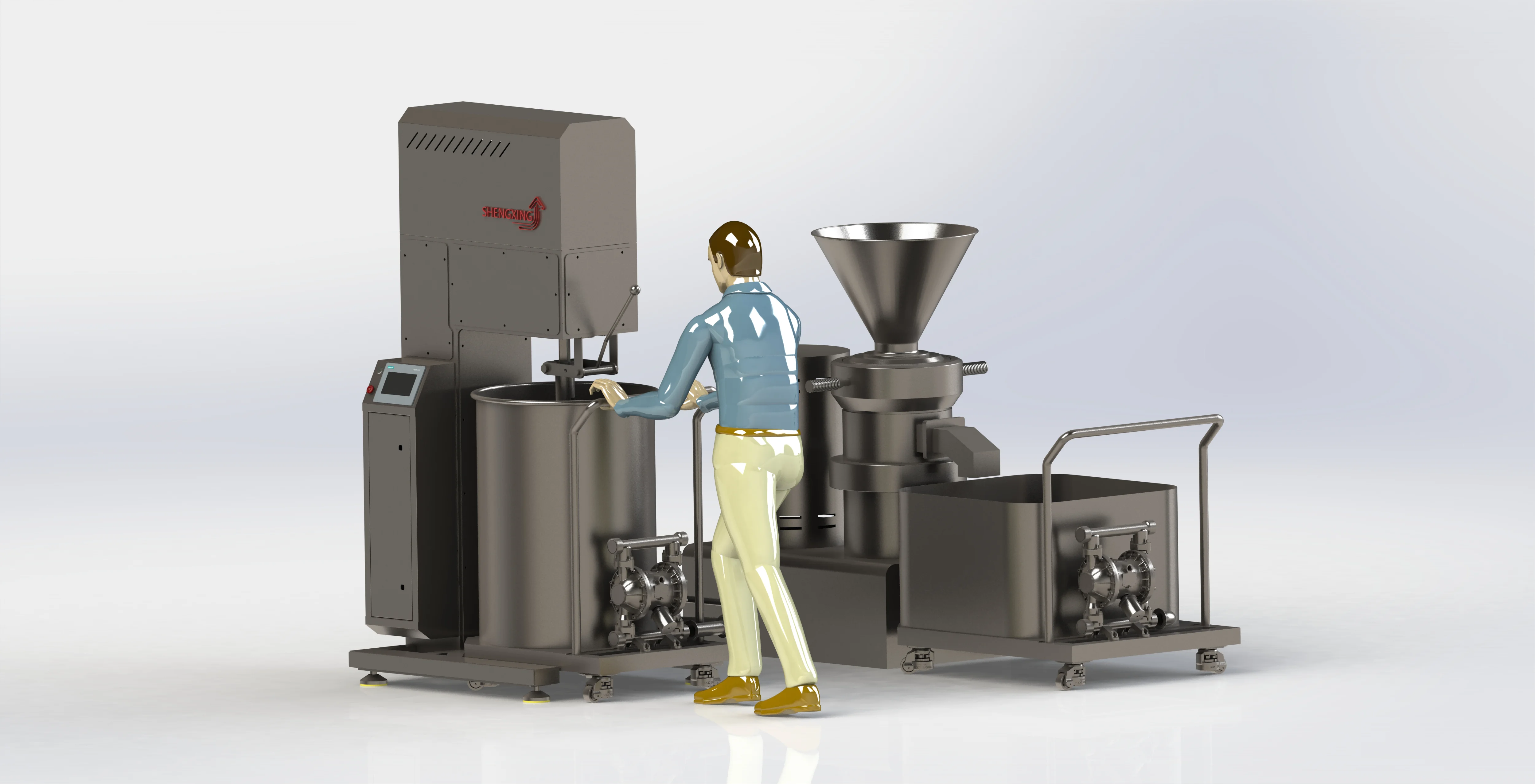

SX-200 Batter Mixing & Homogenizing System — Dual-Stage VFD
Batter mixing and homogenizing system
Rated output: dual 200L tanks | Lead time: 60 days | MOQ: 1 set
Technical Specifications
| Voltage | 380V / 50Hz |
|---|---|
| Mixing power | 4.4 kW |
| Homogenizer power | 15 kW |
| Mixing speed | 0-1,400 RPM, variable frequency |
| Homogenizer speed | 0-2,800 RPM, variable frequency |
| Mobile pump tanks | 2 × 200 L |
| Storage tank | 1 × 200 L |
| Mixer dimensions | 1,220 × 980 × 2,090 mm |
| Homogenizer dimensions | 1,200 × 600 × 1,700 mm |
| Total weight | 1,200 kg |
| Material | Full SUS304 food grade |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
Dual variable-frequency drives run 0-1,400 RPM for mixing and 0-2,800 RPM for homogenizing, which is what stops nozzle clogging on downstream sheeting machines.
What this means on the SX-200
- Micron-level batter refinement removes the nozzle clogging that causes sheet defects
- Two 200 L mobile pump tanks plus a 200 L storage tank decouple mixing from sheeting
- 1,200 kg all-stainless frame absorbs vibration for 24/7 running
Applications & Target Markets
The SX-200 batter mixing and homogenizing system is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Batter for drum machines
Every drum machine in the SHENGXING range depends on batter quality: micron-level refinement is what stops nozzle clogging and sheet defects.
Fermented batters
Fermented teff and dosa-style batters are abrasive and acidic; the homogenizer stage at 0-2,800 RPM keeps them uniform without over-working the starch.
Starch and slurry mixing
Prawn cracker and rice paper slurries need consistent solids suspension, which the dual-stage VFD holds batch to batch.
Should You Specify the SX-200?
The SX-200 is not a standalone product line; it is the batter preparation stage that every drum machine in this catalogue depends on. Specify it when sheet defects trace back to nozzle clogging or inconsistent solids suspension, because those are batter problems, not drum problems. The two 200 L mobile tanks let you mix ahead while the line keeps running.
Certification & Intellectual Property
- Conformity documentation. Material test reports, declarations of conformity and origin documents (CO, Form E, Form F; SASO and SONCAP clearance experience) are supplied with this model. This model designation is not listed on CE certificate M.2022.206.C76950; no CE marking is claimed for it.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
This system is covered by SHENGXING software copyrights and the company patent portfolio. The full list of 8 granted patents is on the certificates page.
Frequently Asked Questions
What is the SX-200 production capacity?
The SX-200 batter mixing and homogenizing system is rated at dual 200L tanks. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the SX-200?
Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order. The exact installed dimensions and weight of this configuration are confirmed on the quotation; we do not publish an estimated figure.
Is the SX-200 CE certified?
The SX-200 model designation is not listed on CE certificate M.2022.206.C76950, so we do not claim CE marking for it. Material test reports, declarations of conformity and origin documents (CO, Form E, Form F; SASO and SONCAP clearance experience) are supplied. If your market requires CE marking for this model, tell us at enquiry stage and we will confirm in writing what can be arranged.
What is the lead time and minimum order quantity for the SX-200?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the SX-200 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Response SLA | 24h reply / 4h engineer intervention / 24h solution; Response within 2 hours; 100% on-time dispatch |
| Commissioning | remote video commissioning resolution rate 98%+. On-site engineer dispatch available, travel costs borne by the buyer |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your SX-200 Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
