Key Facts — 6FSJ-100
SHENGXING 6FSJ-100 prawn cracker production line delivers 80-150 kg/h. The 6FSJ-100 is a complete prawn cracker line in one purchase: mixer, extruder, shaping, bar cutting and slicing, sized for 80-150 kg per hour. Lead time 60 days, MOQ 1 set, FOB / CIF / DDU, port of Tianjin (Qingdao optional).
Shrimp Cracker Line

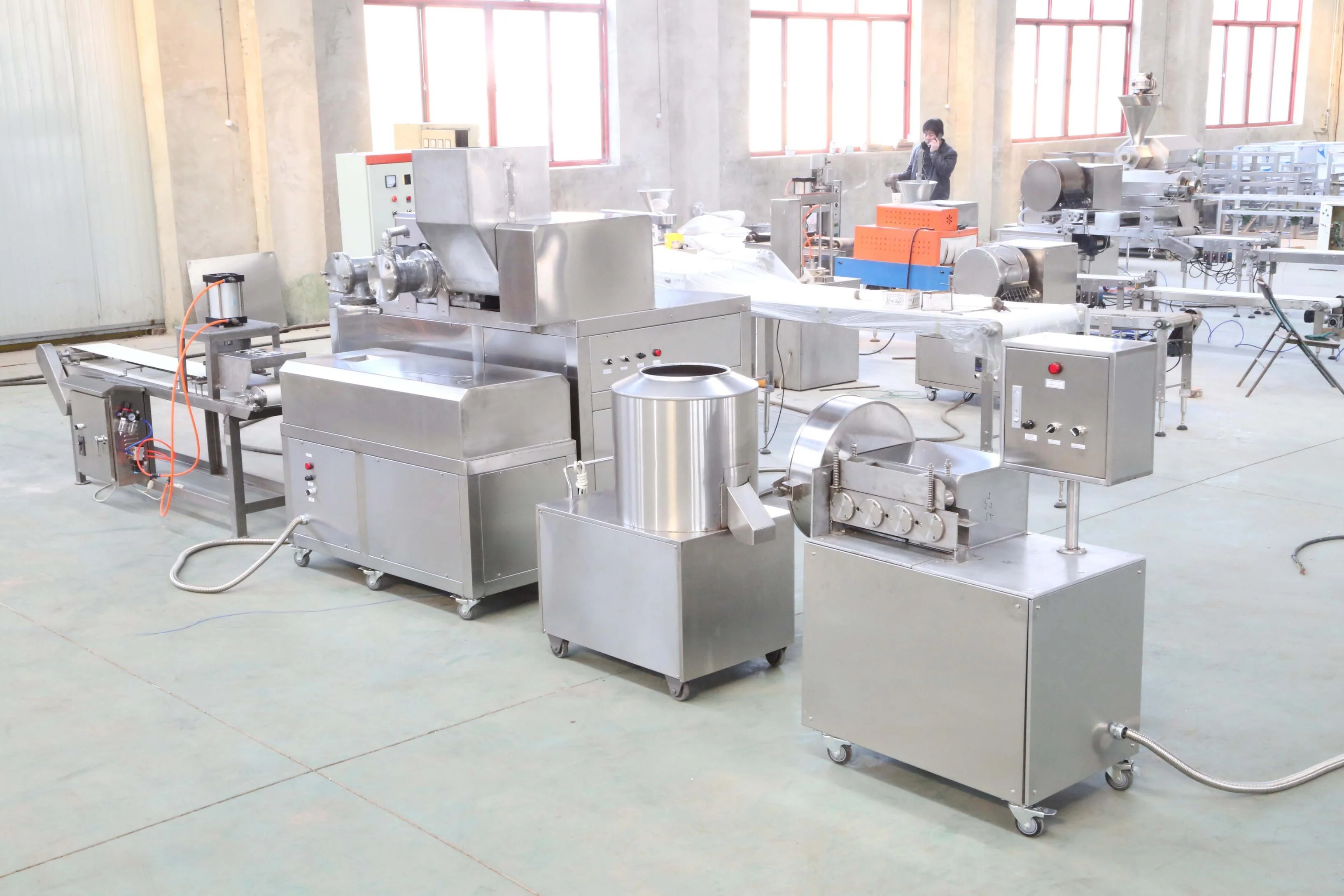

6FSJ-100 Prawn Cracker Production Line — 80-150 kg/h
Prawn cracker production line
Rated output: 80-150 kg/h | Lead time: 60 days | MOQ: 1 set
Product Details
Technical Specifications
| Production capacity | 80-150 kg/h |
|---|---|
| Total line power | 32.5 kW |

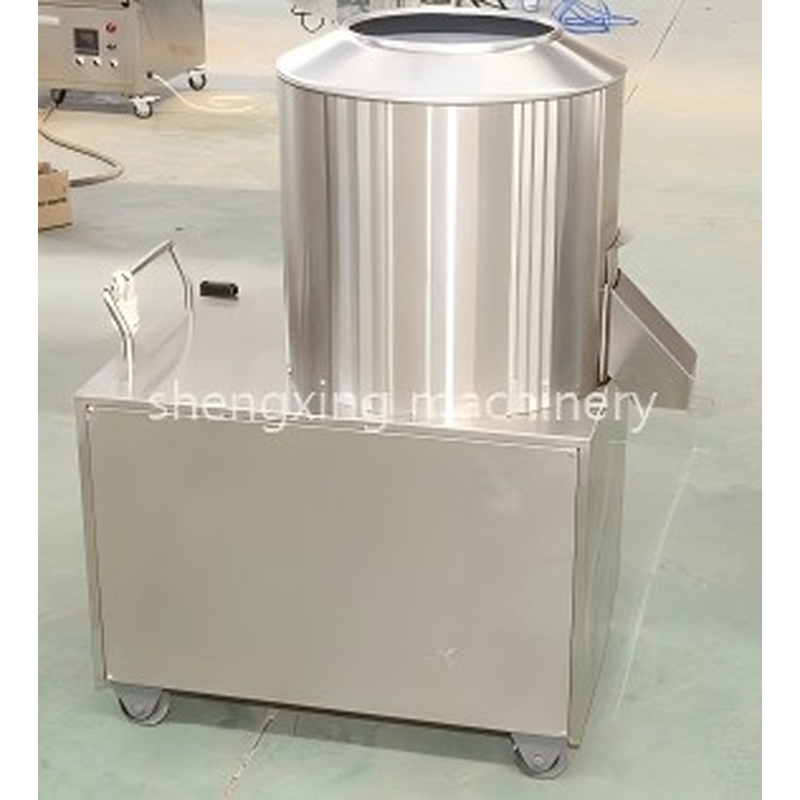

| Powder mixer | 6BD-25, 3.0 kW, 1,050 × 910 × 1,150 mm, 110 kg |

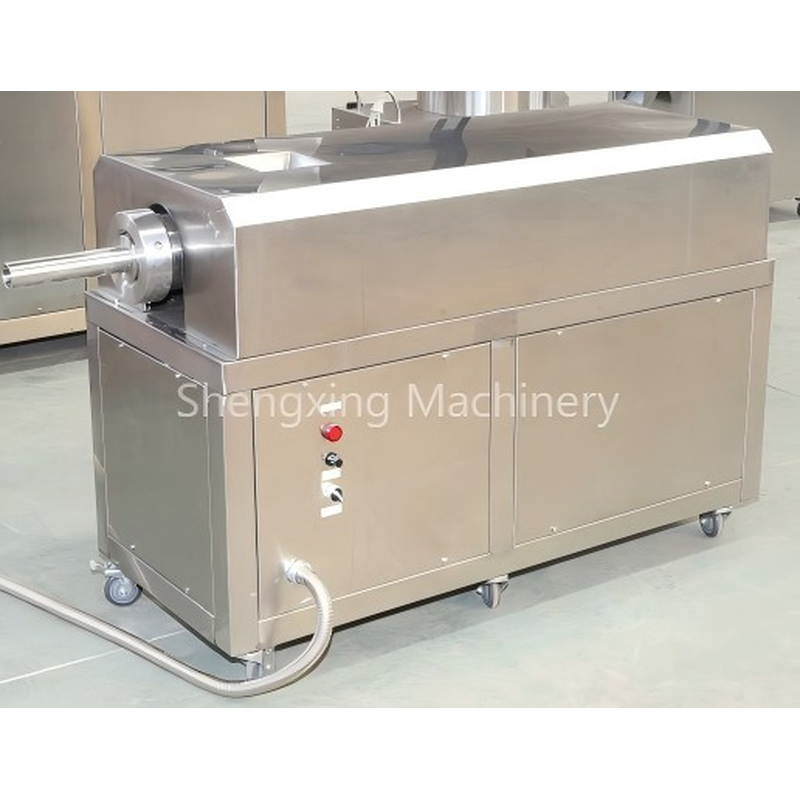

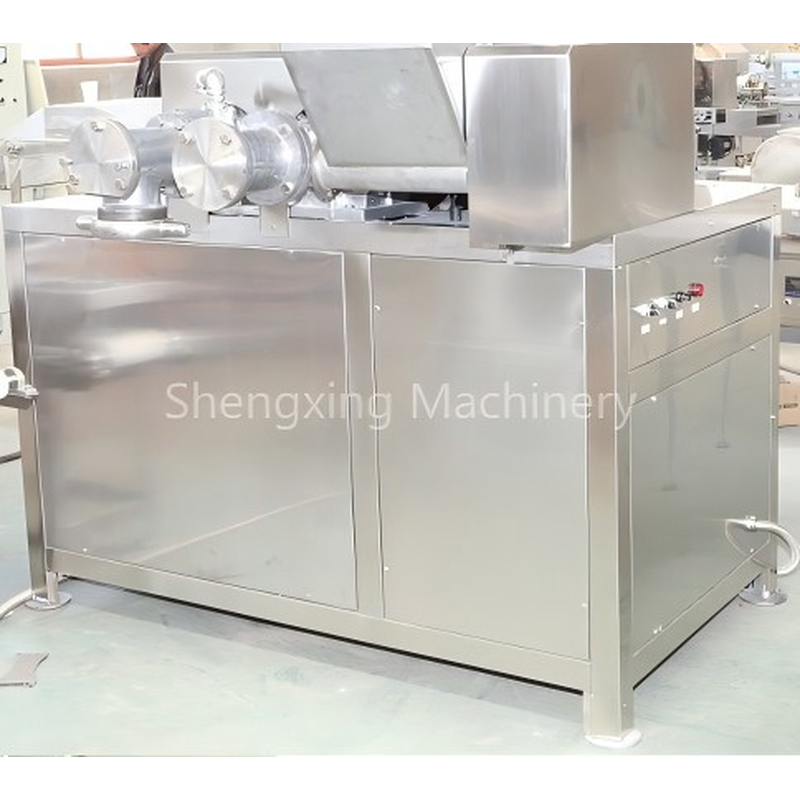

| Extruder | 20.7 kW, 1,850 × 810 × 1,950 mm, 730 kg |
| Shaping machine | 4.0 kW, 850 × 540 × 790 mm, 250 kg |

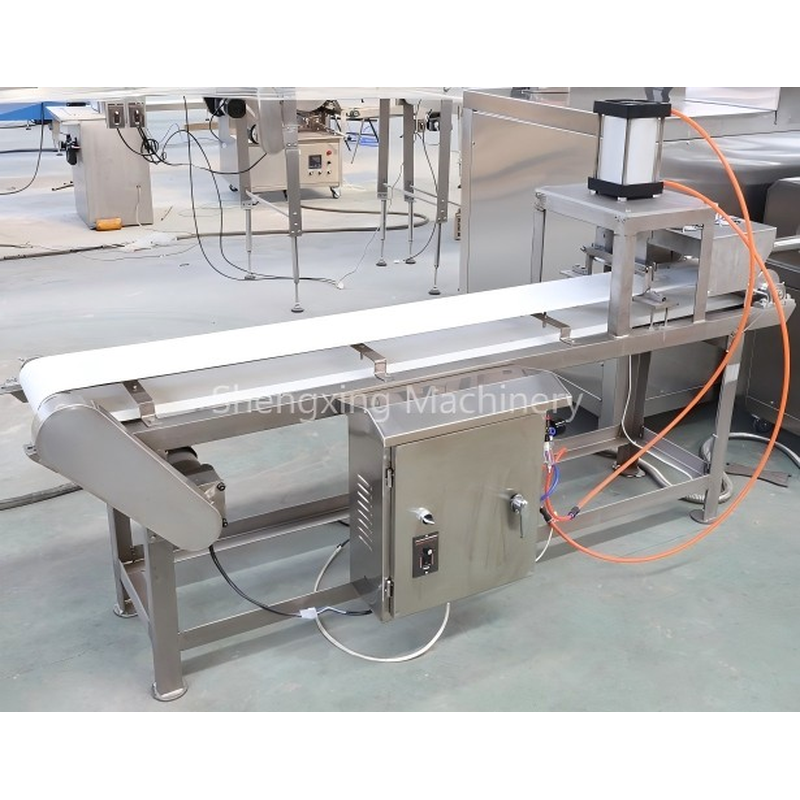

| Bar cutter | 1.3 kW, 1,550 × 540 × 790 mm, 150 kg |

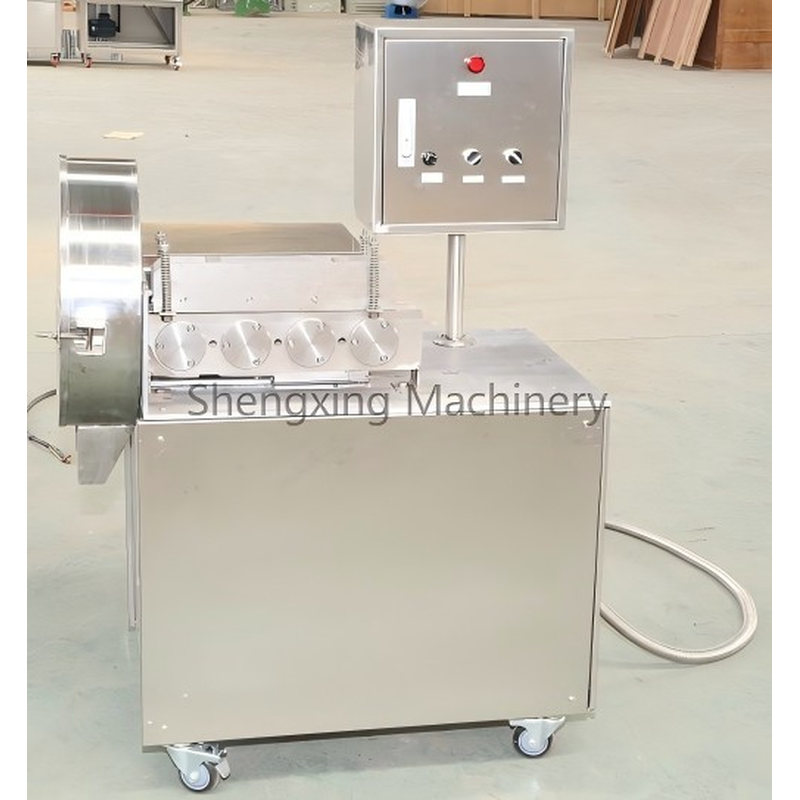

| Slicer | 3.5 kW, 1,050 × 610 × 750 mm, 200 kg |
| Voltage | 380V, 3-phase, 50Hz |
| Material | SUS304, seamless full-weld and polished |
| Moulds | customisable to cracker shape |
| Lead time / MOQ | 60 days / 1 set |
All figures are measured on the standard configuration. Voltage and frequency are customised per destination: 220V / 380V / 415V, 50/60Hz; Schneider or Siemens electricals.
Core Structural Advantages
At 32.5 kW total connected load it runs on a standard three-phase 380V supply and needs no separate feeder unit, which the 6FSJ-400 requires.
What this means on the 6FSJ-100
- Double-stage steam-cooked extrusion gives a high expansion rate and a crisp bite that does not shatter
Applications & Target Markets
The 6FSJ-100 prawn cracker production line is supplied to industrial food producers in 100+ countries. The same frame serves the product formats below; only batter, tooling size and line speed change between them.
Krupuk and prawn crackers (Indonesia, Malaysia)
Krupuk needs a high expansion rate with a crisp bite that does not shatter in the bag; double-stage steam-cooked extrusion is what delivers it.
Shrimp chips and crackers (global snack trade)
Fish and tapioca-based crackers
The same line runs fish cracker and tapioca starch formulations; only the mould and the extruder temperature profile change.
Should You Specify the 6FSJ-100?
The 6FSJ-100 is a complete line in one purchase: mixer, extruder, shaping, bar cutter and slicer. At 32.5 kW total connected load it runs from a standard three-phase supply and, unlike the flagship, needs no separate feeder. It is the usual first line for a snack producer adding prawn crackers to an existing range.
Certification & Intellectual Property
- Conformity documentation. Material test reports, declarations of conformity and origin documents (CO, Form E, Form F; SASO and SONCAP clearance experience) are supplied with this model. This model designation is not listed on CE certificate M.2022.206.C76950; no CE marking is claimed for it.
- Third-party verification. Onsite verified by TÜV Rheinland, 2026-06-02
Granted patents covering this technology
- ZL 2019 2 0412856.8 — Prawn cracker production line (Utility model, granted 2020-01-03)
All 8 granted patents, with numbers, titles and grant dates, are listed on the certificates page. We state "granted" only; annual-fee maintenance status is not published.
Frequently Asked Questions
What is the 6FSJ-100 production capacity?
The 6FSJ-100 prawn cracker production line is rated at 80-150 kg/h. That rating is a sustained figure on the standard configuration, not a peak; actual output depends on batter rheology, sheet size and operator loading.
What are the installed dimensions and weight of the 6FSJ-100?
Send us your floor dimensions and we provide a free 2D/3D plant layout drawing before you order. The exact installed dimensions and weight of this configuration are confirmed on the quotation; we do not publish an estimated figure.
What is the lead time and minimum order quantity for the 6FSJ-100?
Lead time is 60 days and MOQ is 1 set. Payment terms are 50% deposit + 50% before shipment after video inspection. Quotes are held for 30 days and are issued in USD by default; USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) are all accepted.
Can the 6FSJ-100 be customised for our product?
Yes. OEM/ODM for 70 years; free 2D/3D plant layout; multilingual HMI (EN/ES/AR/FR) Engineers tune drum speed and temperature to your batter, apply your logo and panel colour, produce custom spray heads or moulds for special shapes, and supply HMI panels in English, Spanish, Arabic and French. Standard tuning and deep customisation both start at one unit.
Delivery, Installation & Service
| Lead time | 60 days from confirmed order and deposit |
|---|---|
| Minimum order | 1 set |
| Payment | T/T, L/C, D/P D/A, MoneyGram, Credit Card, Western Union, Escrow. Terms: 50% deposit + 50% before shipment after video inspection |
| Currencies | USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY (quotes default to USD) |
| Incoterms | FOB / CIF / DDU (14 Incoterms supported) |
| Loading port | Tianjin (Qingdao optional) |
| Packing | export-standard fumigation-free wooden crates, shock and moisture protected |
| Transit time | Southeast Asia 7-15 days; Middle East & USA 30-40 days; Europe 35-45 days |
| Documents | Invoice, packing list, B/L, CO, Form E, Form F; SASO and SONCAP clearance experience |
| Warranty | 1-year warranty on the complete machine (wear parts excluded) |
| Response SLA | 24h reply / 4h engineer intervention / 24h solution; Response within 2 hours; 100% on-time dispatch |
| Commissioning | remote video commissioning resolution rate 98%+. On-site engineer dispatch available, travel costs borne by the buyer |
| Pre-shipment check | Run test, appearance check and packing video sent for your approval before dispatch |
| Third-party verification | Onsite verified by TÜV Rheinland, 2026-06-02 |
Ready to Configure Your 6FSJ-100 Line?
Send us your product, target capacity and sheet size. Our engineers return a configuration proposal with a free 2D/3D plant layout drawing and an ROI calculation. Lead time 60 days, MOQ 1 set.
